On 10.12.2020, “New Technologies and Systems-Select-Petko Vatev” Sole Proprietorship signed Grant Agreement No. BG16RFOP002-2.040-1098-C01 with the Ministry of Economy under the procedure “Improving the Production Capacity of SMEs” within the Operational Programme “Innovation and Competitiveness”.

The project entitled “Improving the Production Capacity of ET New Technologies and Systems-Select-Petko Vatev” has a total value of BGN 713,500, of which BGN 424,532.50 is financed by the European Regional Development Fund and BGN 74,917.50 is national co-financing.
Project start date - 10.12.2020
Project completion date - 10.12.2021


Main objective of the project proposal is to improve production capacity through increasing the efficiency of production costs and strengthening export potential by diversifying the range of products and services.

The following equipment was purchased and implemented into production under the project:

1. Turning-Milling Machining Center

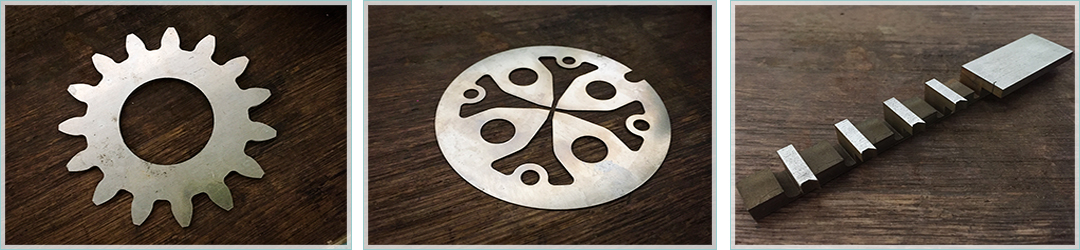

2. Laser Cutting Machine
3. Measuring Machine

All project activities are carried out in Pleven, 1 Radishevsko Shose Street, at the production facility of NTS Select.

We have available production capacity for:

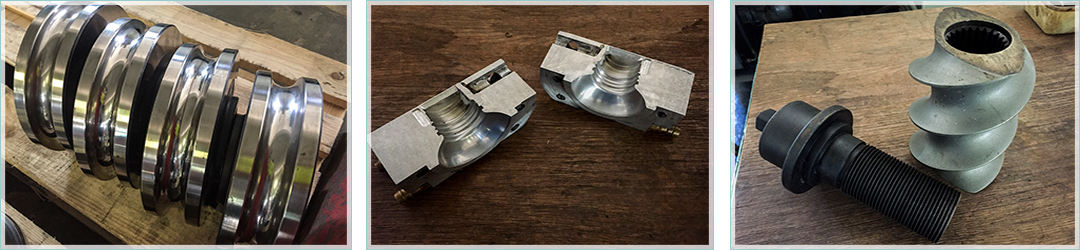

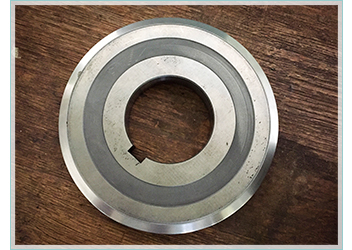

• Manufacturing of rotary parts from metal bar stock.
• Production of components using CNC milling and turning machines, as well as sinker and wire EDM machining.

• Design and manufacturing of plastic injection moulds, cutting dies and stamping tools for cutting, bending and drawing operations.
• Production of plastic parts.

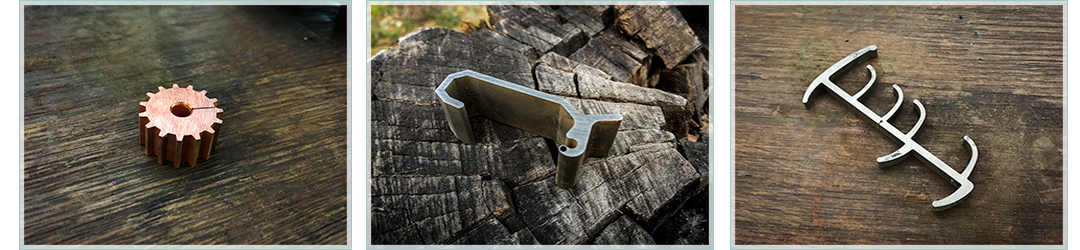

• Metal processing activities.
• Water meter testing and verification.

Manufacturing and engineering activities in the field of:

• Production of spare parts for:
  • water meters
  • automotive industry and agricultural machinery
  • garment industry
  • mechanical engineering and instrument manufacturing
  • measuring equipment
• dosing pumps
• chlorination systems and hydraulic pumps
• water meter testing and verification

NTS “Select” operates a production facility with an area of 2,500 m². Equipment, machinery and facilities:
		Tooling Department Wire EDM machine Sinker EDM machine Coordinate boring machine Grinding machines Tool milling machines and universal lathes

Coil Winding Department Coil winding machines Injection Moulding Department Injection moulding machines: up to 10 grams up to 40 grams up to 150 grams

Mechanical Workshop CNC metal cutting machines Lathes /types/: watchmaker's lathes, MH, C8, C11 Milling machines: FU 251, FU 320, FM 20 Cam-operated automatic machines Grinding machines Guillotines, presses, press brakes, welding machines and others

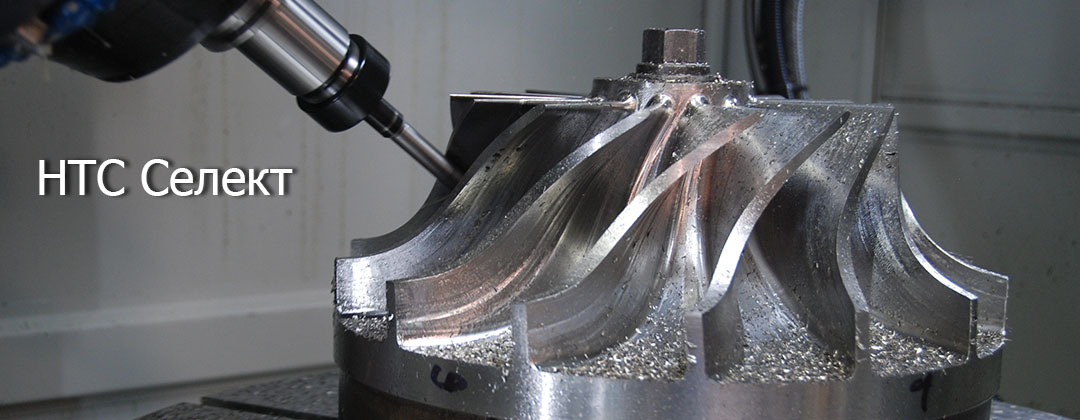

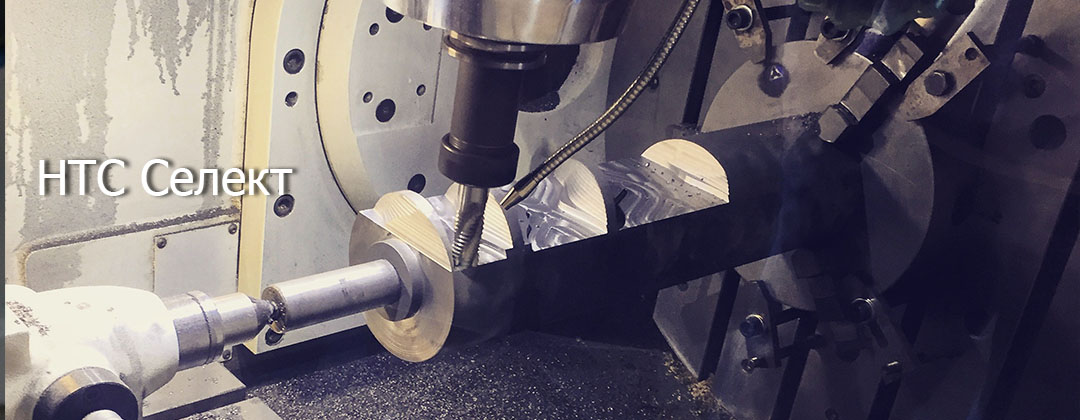

Spinner U1520

This is one of our latest high-tech machines. The Spinner U5-1520 is a 5-axis machining center equipped with Heidenhain TNC630 control and a spindle speed of 12,000 rpm. It features 54 rotating tool positions and provides the option of coolant-through-drill machining.

The machine has a full 5-axis table as well as an additional flat table on the left side.
As a result, secondary operations can be performed simultaneously.
The 5-axis table can also be aligned with the second table, providing a 1.5-meter machining bed for the production of long components.

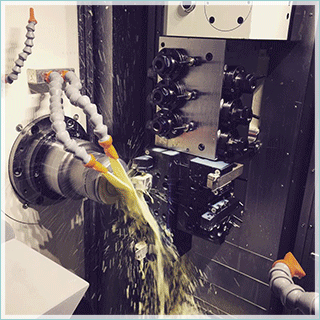

Quicktech i-42 TWIN

QuickTECH i-42 Twin is a compact, high-quality, high-performance CNC turn-mill center manufactured from Meehanite cast iron.

With a 42 mm material clamping capacity, this unique machining center provides complete part machining, including all complex milling functions. The i-42 Twin features 7 axes, 2 rotating spindles, 1 milling spindle, 1 B-axis and a total capacity of 30 tools.

A vertical four-axis tool post (X, Y, Z, B) is shared by each spindle via the C-axis.

+GF+ Agiecharmilles P20

The wire EDM machine makes it possible to manufacture, refine or modify precision components with perfectly shaped geometries and extremely fine surface finishes.

Parts are finished to an accuracy of +/- five microns (five thousandths of a millimeter) with internal radii smaller than 5 microns. This level of precision sets new standards in this segment.
